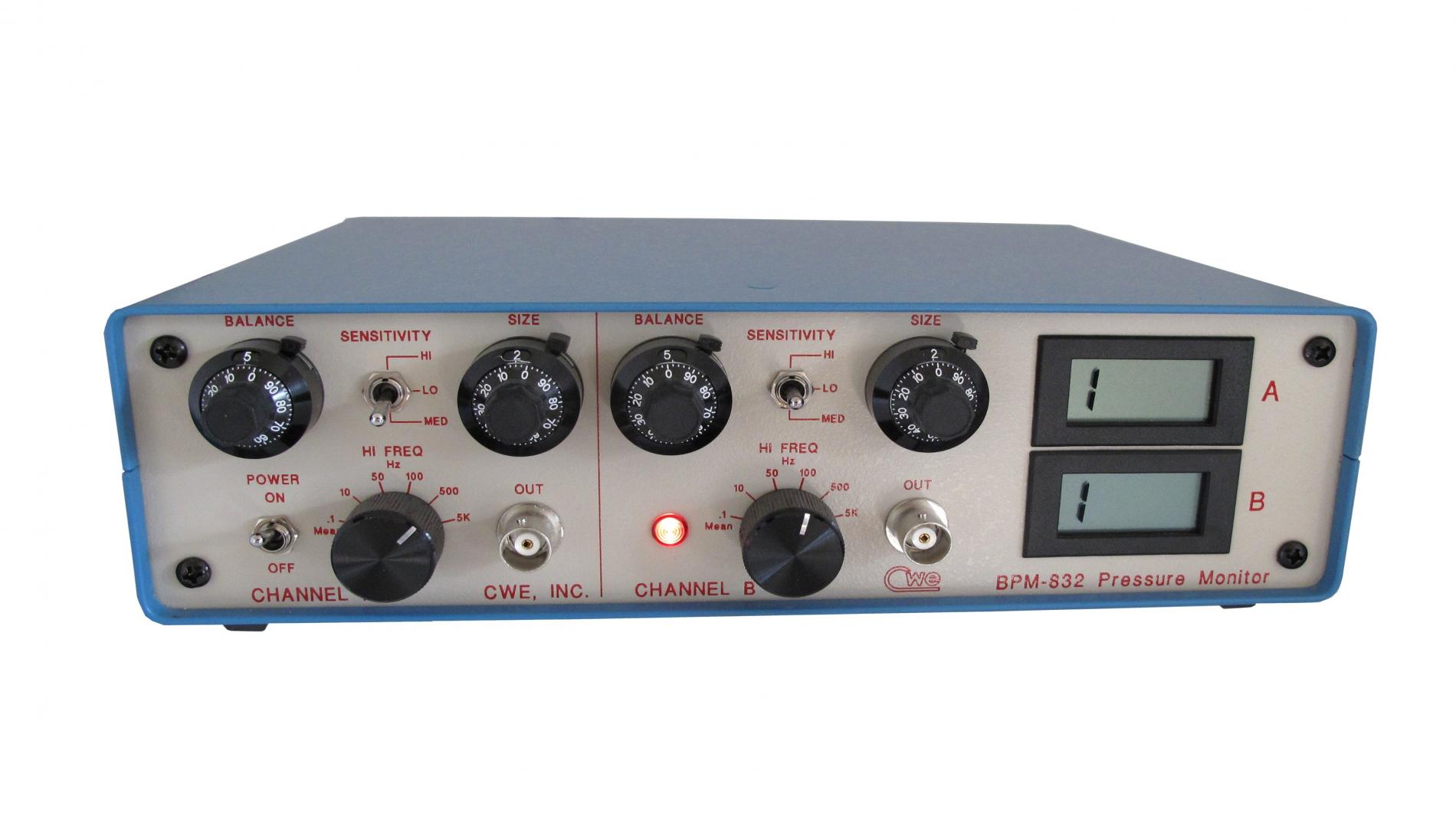

BPM-832 Dual Pressure Monitor

Dual Channel BP amplifier

BPM-832
Product Category: Direct Blood Pressure
Part No.: 08-12000

The BPM-832 Pressure Monitor provides two independent amplifiers for use with bridge-type transducers, including pressure, force, and acceleration. Each channel includes a preamplifier, low-pass filtering, adjustable DC balancing, and a digital readout.

The wide gain range of the BPM-832 and its excellent DC stability make it the perfect choice for interfacing most bridge-type transducers. The digital display can be calibrated in real-world units, such as mmHg, for convenient monitoring. Corresponding analog outputs are provided for each channel for external recording.

A universal +12V power supply is included. The BPM-832 provides a compact, economical solution for most transducer interfacing applications.

  • Overall gain range: 0 - 1000X
  • Excitation voltage: 5.00VDC standard (adjustable to 4.0 - 10.0VDC
  • Balance ranges: +10mV, +100mV, +500mV, jumper selectable
  • Low-pass filters: 0.1Hz (mean), 10, 50, 100, 500, and 5000Hz
  • Input connectors: ITT Canon WK6-32S, 6-pin shielded
  • Output connectors: BNC jacks
  • Digital readouts: LCD, +1999, arbitrary units
  • Power supply: +12VDC regulated
  • Power requirements: 120/240VAC
  • Dimensions: 9.4W x 2.5H x 8 inches (24 x 6.4 x 20.5 cm)
  • Wide gain range and excellent DC stability
  • Two amplifier channels for bridge-type transducers including pressure, force, and acceleration
  • High-gain preamplifier, low-pass filtering, adjustable DC balancing
  • Analog outputs compatible with data acquisition systems
  • Digital readout

Data Sheet

Accessories

CWE BP Calibration Kit

BP Calibration Kit

Part No. 10-04050

Includes sphygmomanometer, bulb, tubing, and connectors

DTX-1 BP Transducer

DTX-1 BP Transducer

Part No. 10-04100

The DTX-1 is a standard, medical-grade BP transducer suitable for use with rats and larger animals. The TC-GRA adapter cable is required for use.

Components for one BP transducer assembly:
1 ea DTX-1 BP transducer
1 ea TC-GRA Adapter cable

Sterile pack of 10 DTX-1 direct BP transducers

DTX-10 Sterile pack of ten DTX-1 transducers

Part No. 10-04110

Sterile pack of 10 DTX-1 direct BP transducers

PS-1000/A-004 Sensitive Differential Transducer

PS-1000/A-004 Sensitive Differential Transducer

Part No. 10-04011

Sensitive differential transducer, +10cmH20 range. Air use only.  Airflow monitoring with pneumotach.

PS-1000/A-1 Pressure Transducer

PS-1000/A-1 Pressure Transducer

Part No. 10-04010

Pressure transducer, +70cmH20 for air use. Airway pressure monitoring. Air use only.

TC-GRA Transducer Adapter Cable

TC-GRA Transducer Adapter Cable

Part No. 10-04210

Adapter cable for DTX-1 transducers. Required for use with DTX-1 transducer.
