CWE TA-100 Single-Channel Transducer Amplifier

Single Channel Transducer Amplifier

TA-100
Product Category: Direct Blood Pressure
Part No.: 08-14000

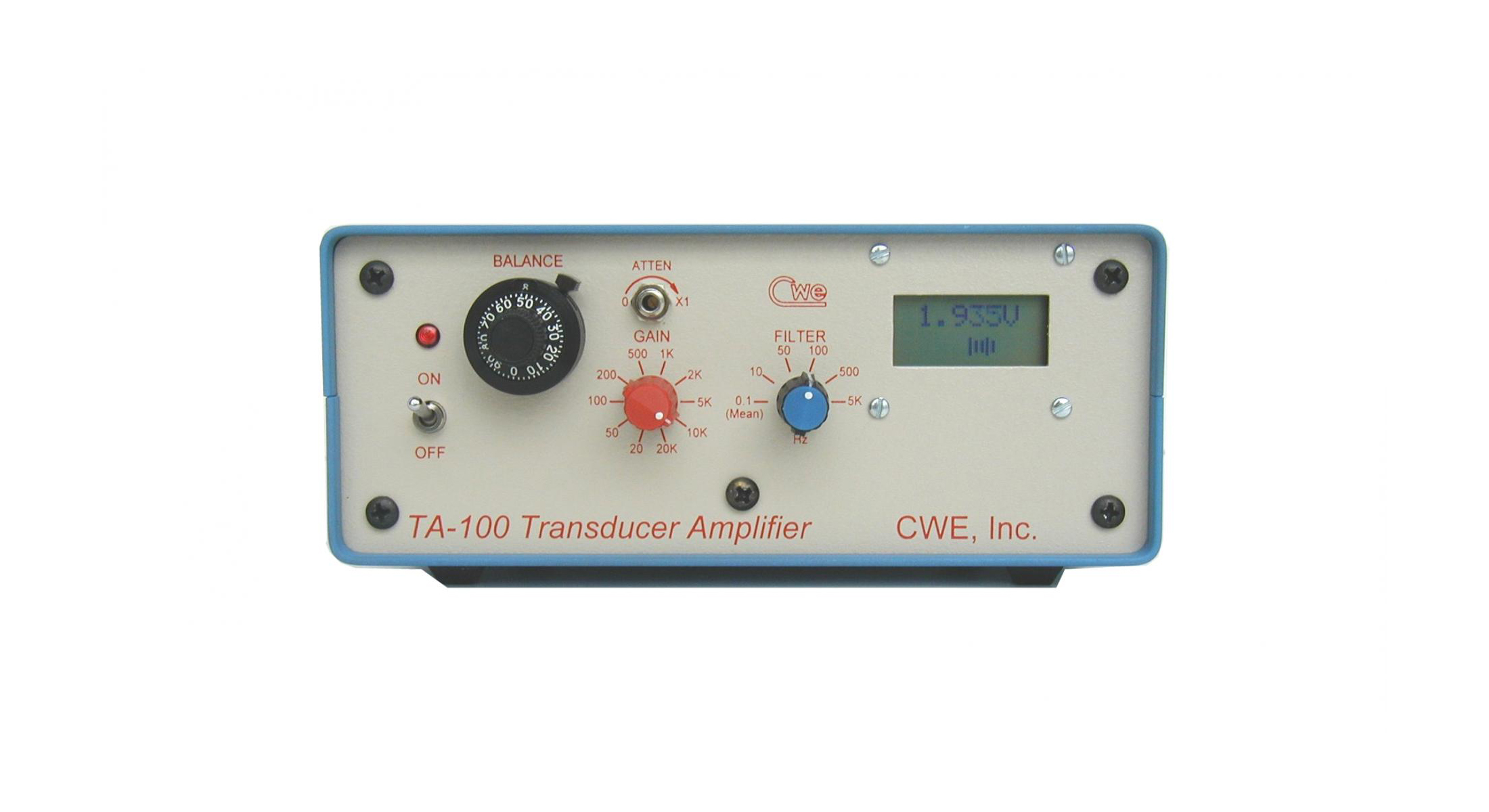

The TA-100 is a compact, stand-alone amplifier for use with all DC-bridge type transducers. Compatible transducers include blood or air pressure, strain gages, force transducer, and accelerometers. A built-in LCD display shows the current measurement as well as a fast-response bar-graph for easy visualization of a changing signal. A standard serial port allows remote data collection using any simple terminal software.

The TA-100 has a wide gain range, zero offset control, and a six-position low-pass filter including a mean function.. The analog output signal is via a BNC jack. Includes 5V power supply.

  • Input impedance : >1000 Megohms
  • Common Mode Rejection Ratio: > 85dB
  • Input offset voltage drift with temperature: +0.5uV/oC
  • Gain settings: 20, 50, 100, 200, 500, 1000, 2000, 5000, 10,000, 20,000X, with 0-1X attenuator
  • Transducer excitation voltage: +5V,  3 - 10VDC internally adjustable
  • Input connector: Cannon WK-6-32S six pin
  • Low-pass filter type: Butterworth, -12dB/octave rolloff
  • Low-pass filter settings: 0.1Hz (mean), 10, 50, 100, 500Hz, 5KHz
  • Output voltage range: +8.1V@+7mA
  • Serial data output settings: 9600,N,8,1
  • Power requirements: +5VDC@100mA
  • Dimensions: 6.4W x 2.5H x 5D inches (16 x 6.4 x 13 cm)
  • Compact, stand-alone amplifier
  • Compatible with BP or air pressure, strain gages, force transducer, and accelerometers
  • Wide gain range
  • Output signal compatible with all data acquisition systems
  • LCD display shows current measurement and fast-response bar-graph for easy visualization of a changing signal
  • Standard serial port allows remote data collection

Data Sheet

Accessories

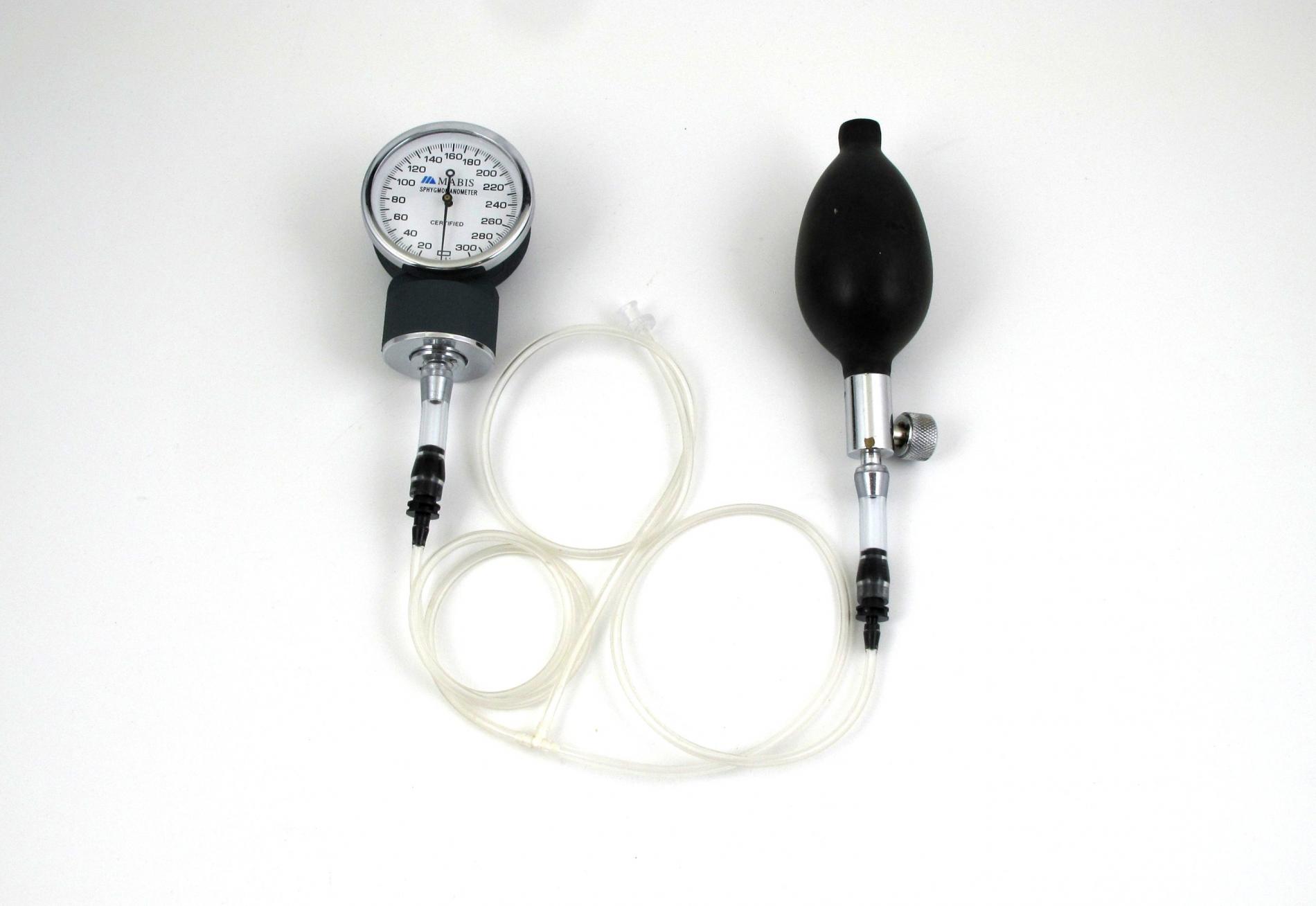

CWE BP Calibration Kit

BP Calibration Kit

Part No. 10-04050

Includes sphygmomanometer, bulb, tubing, and connectors

DTX-1 BP Transducer

DTX-1 BP Transducer

Part No. 10-04100

The DTX-1 is a standard, medical-grade BP transducer suitable for use with rats and larger animals. The TC-GRA adapter cable is required for use.

Components for one BP transducer assembly:
1 ea DTX-1 BP transducer
1 ea TC-GRA Adapter cable

Sterile pack of 10 DTX-1 direct BP transducers

DTX-10 Sterile pack of ten DTX-1 transducers

Part No. 10-04110

Sterile pack of 10 DTX-1 direct BP transducers

PS-1000/A-004 Sensitive Differential Transducer

PS-1000/A-004 Sensitive Differential Transducer

Part No. 10-04011

Sensitive differential transducer, +10cmH20 range. Air use only.  Airflow monitoring with pneumotach.

PS-1000/A-1 Pressure Transducer

PS-1000/A-1 Pressure Transducer

Part No. 10-04010

Pressure transducer, +70cmH20 for air use. Airway pressure monitoring. Air use only.

TC-GRA Transducer Adapter Cable

TC-GRA Transducer Adapter Cable

Part No. 10-04210

Adapter cable for DTX-1 transducers. Required for use with DTX-1 transducer.
